シリコンエピタキシー

Veteksemicon silicon epitaxy solutions are your strategic procurement choice for advanced semiconductor wafer processing, particularly in CMOS, power devices, and MEMS applications. As a key process in wafer engineering, silicon epitaxy (Si Epi) involves the precise deposition of a crystalline silicon layer on top of a polished silicon wafer, offering superior control of doping profiles, defect density, and layer thickness.

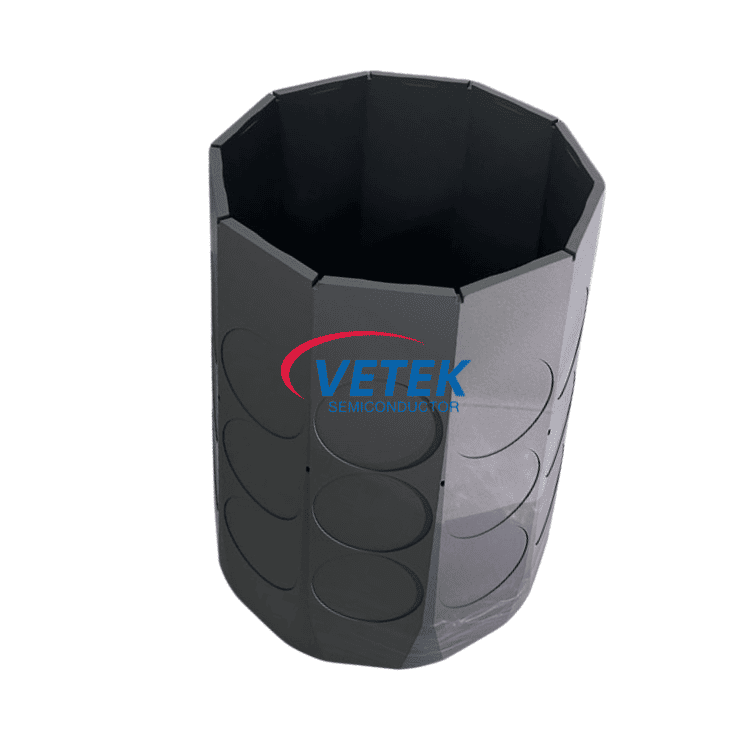

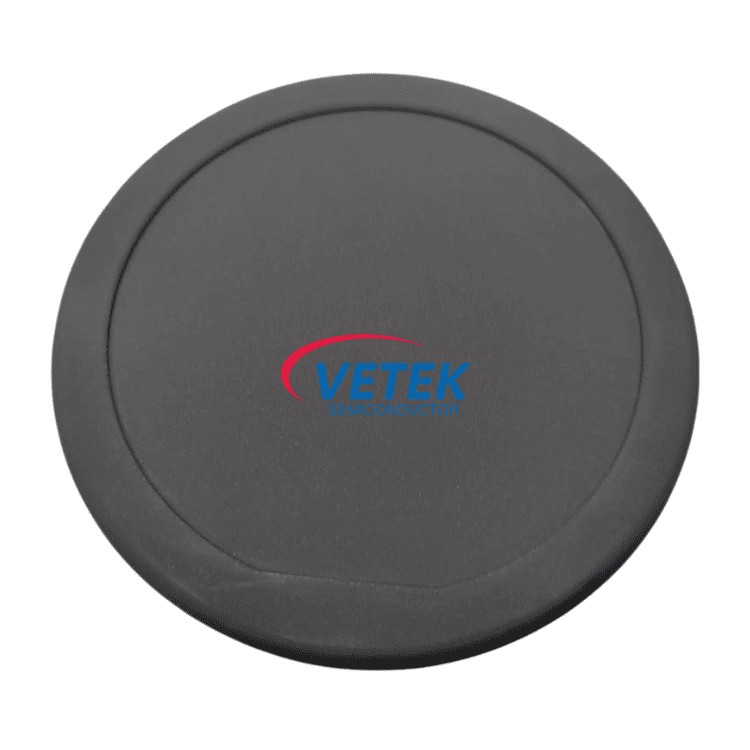

Veteksemicon provides epitaxy-ready susceptor parts and reactor components used in Epi CVD systems, supporting both atmospheric and reduced pressure processes. Our product lineup includes silicon epitaxy susceptors, carrier rings, and coated wafer holders, optimized for compatibility with tools from Applied Materials, ASM, and Tokyo Electron (TEL).

Silicon epitaxy plays a critical role in producing ultra-thin junctions, strained silicon layers, and high-voltage isolation structures. Our materials and parts are engineered for high-purity, uniform thermal distribution, and anti-contamination performance during n-type and p-type epitaxial growth.

Closely associated terms include epitaxial wafer, in-situ doping, epitaxy-ready SiC coatings, and epi reactor parts, which support the entire upstream and downstream process of silicon-based IC fabrication.

Discover more about Veteksemicon’s silicon epitaxy support solutions by visiting our product detail page or contacting us for technical consultation and part customization.
